Features

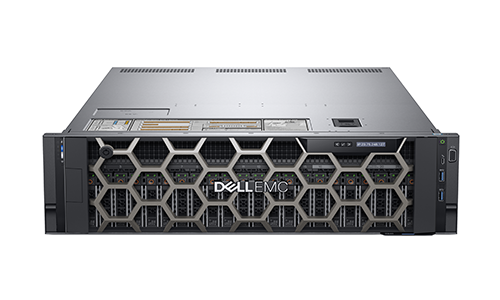

Empower your organization to make the best decisions fast using real-time data and analytics. The PowerEdge R940 supports 50% more NVMe drives than the R930, up to 48 DIMMs (24 of which can be Intel® Optane™ DC persistent memory DCPMMs) and up to 15.36TB of memory*

• Accelerate your large applications (ERP, CRM, business intelligence) with the capacity to quickly respond to business-growth demands.
• Consolidate multiple corporate-wide applications to a single server.
• Enable faster access to critical business-application data and shrink customer response times with in-memory database capability.
• Efficiently support SAN environments with Dell Fluid Cache for SAN in combination with up to eight Express Flash SSDs.
• Migrate from an outdated RISC environment to a more agile future-ready data center.

Specification

• Processor: Up to four Intel® Xeon® SP, up to 28 cores
• Memory: 48 DDR4 DIMM slots, Supports RDIMM /LRDIMM, up to 2666MT/s, 6TB max
                    Up to 12 NVDIMM, 192 GB Max
                    Supports registered ECC DDR4 DIMMs only
• Drive bays: Front drive bays: Up to 24 x 2.5” SAS/SATA (HDD/SSD) with up to 12 NVMe PCIe SSD, max 122TB
• I/O & Ports: Network daughter card options
  4x 1Gb, 4x 10Gb, 2x 10Gb+2x 1Gb, or 2x 25Gb
• Front ports: Video, 2 x USB 3.0, dedicated IDRAC Direct USB
• Rear ports: Video, serial, 2 x USB 3.0, dedicated iDRAC network port
• Video card: VGA Up to 13 x Gen3 slots, (3 x8 + 10 x16)
