Features

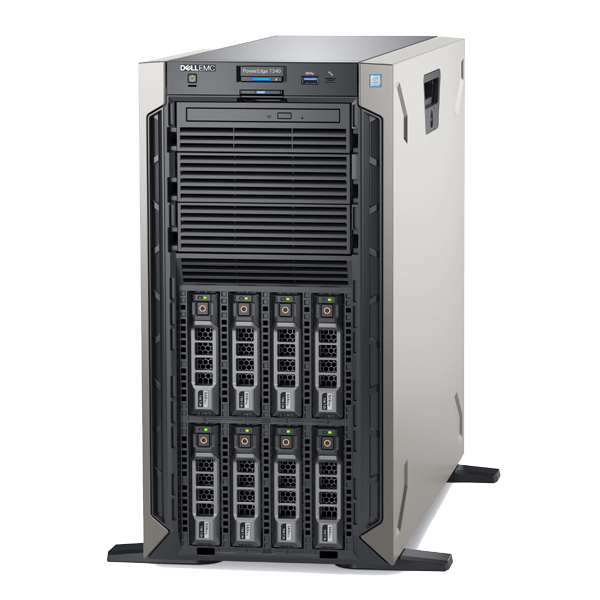

The Dell EMC PowerEdge T340 enables you to grow through collaboration. Grow without limits* with this reliable and easy to manage server.

• Operate reliably with up to 8 hot-plug HDD’s or SSD’s and redundant power supplies.
• Easily manage multiple remote servers via the intuitive general user interface with iDRAC9 Group Manager or upgrade to OpenManage Enterprise.
• Drive your business forward with improved performance due to 50% more cores with Intel® Xeon® E-2100 processors, 11% increase in memory speed, and 20% more PCIe lanes.

Specification

• Processor: 1 processor from the following: Intel® Xeon® E-2100 product family, Intel Pentium®, Intel Core i3®, Intel Celeron®
• Memory: 4x DDR4 DIMM slots, supports UDIMMs, speeds up to 2666MT/s, 64GB max. supports registered ECC
• Drive bays:  Up to 8 x 3.5” hot-pluggable bays (also supports 2.5” HDD in 3.5” hybrid drive carrier)
• I/O & Ports:
  Networking options:
  2 X 1GbE LOM
• Front Ports: 1x USB 3.0, 1x iDRAC micro USB 2.0 management port
• Rear Ports: 2x USB 3.0, 4x USB 2.0, VGA, serial connector
• Internal USB: 1x internal USB 3.0
  4 x PCIe Slots:
  1x8 Gen3 (x16 connector) FH/HL
  1x8 Gen3 (x8 connector) FH/HL
  1x4 Gen3 (x8 connector) FH/HL
  1x1 Gen3 (x1 connector) FH/HL
• Storage controllers :
  Internal controllers: PERC H730P, H330, HBA330 (non-RAID)
  Software RAID: PERC S140
  External HBAs: 12Gbps SAS HBA (non-RAID)
  Boot Optimized Storage Subsystem: 2x M.2 240GB (RAID 1 or No RAID), 1x M.2 240GB (No RAID only)
