Features

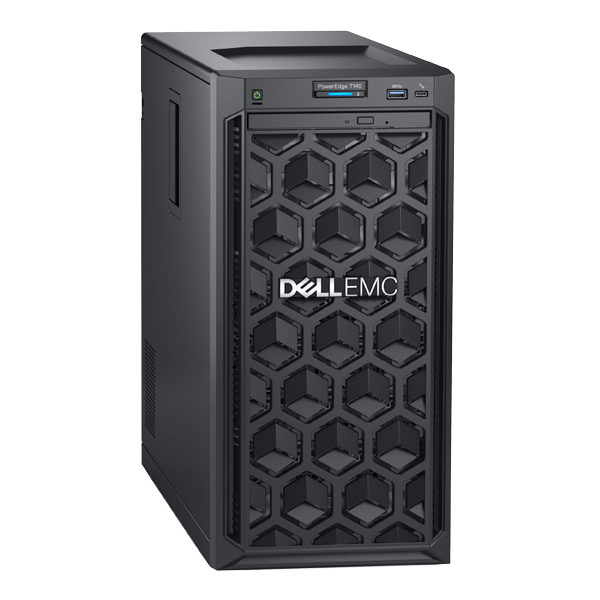

The Dell EMC PowerEdge T140 allows you to focus on your business, that’s why we offer the entry-level practical business server. Organize your data in one central data repository.
- Take advantage of flexible tower placement options with quiet acoustics and thermal efficiency
- Keep your data safe with software RAID by saving your data automatically
- Help data privacy when you repurpose or retire servers with System Erase of local storage
Specification
- Processor: 1 processor from the following: Intel® Xeon® E-2100 product family, Intel Pentium®, Intel Core i3®, Intel Celeron®
- Memory: 4x DDR4 DIMM slots, supports UDIMMs, speeds up to 2666MT/s, 64GB max. supports registered ECC.
- Drive bays: Up to 4 x 3.5” cabled bays
- I/O & Ports: Networking options:
2 X 1GbE LOM
- Front Ports: 1x USB 3.0, 1x iDRAC micro USB 2.0 management port
- Rear Ports: 2x USB 3.0, 4x USB 2.0, VGA, serial connector
- Internal USB: 1x internal USB 3.0
4 PCIe Slots:
1x8 Gen3 (x16 connector) FH/HL
1x8 Gen3 (x8 connector) FH/HL
1x4 Gen3 (x8 connector) FH/HL
1x1 Gen3 (x1 connector) FH/HL
- Storage controllers :
Internal controllers: PERC H730P, H330, HBA330 (non-RAID)
Software RAID: PERC S140
External HBAs: 12Gbps SAS HBA (non-RAID)
Boot Optimized Storage Subsystem: 2x M.2 240GB (RAID 1 or No RAID), 1x M.2 240GB (No RAID only)
