Features

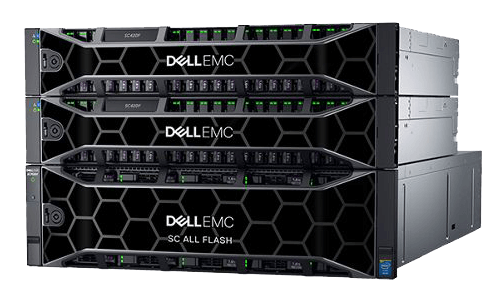

Dell EMC SC All-Flash Storage Arrays are smart AFA choice for modern workloads that provides self-optimizing performance, federated scale and mobility, all-inclusive software value.

• Overcome diverse storage challenges with the flexible, powerful future-ready SC storage
• Transformational performance
• Dynamic intelligence
• Efficiency and value
• Data Progression

Specification

Expansion Capacity

• Supported expansion enclosures
  Dell EMC SC420F: 24 x 2.5” drive bays (12Gb SAS)

• Maximum drive count
  SC7020F: 606 drives per array, more in federated systems1
  SC5020F: 222 per array (with optional expansion enclosures), more in federated systems1

• Max raw capacity
  SC7020F: 4PB per array, more in federated systems1
  SC5020F: 2.16PB per array, more in federated systems1

• Storage media
  SSD: write-intensive and read-intensive drives (can be mixed in single system), SED SSDs

• RAID support
  RAID 0, 1, 5, 6, RAID 10, and RAID 10 DM (Dual Mirror); any combination of RAID levels can exist on a single array

Environmental Operating Conditions

• Operating temperature: 50 - 95°F (10 - 35°C)
• Non-operating temperature: -40 - 149°F (-40 - 65°C)
• Operating humidity ranges (non-condensing): 10% to 80% with 29°C (84.2°F) maximum dew point
• Non-operating humidity (non-condensing): 5% to 95% with 33°C (91°F) maximum dew point
• Inlet type: NEMA 5-15/CS22.2, n°42
